Cathodic Fluorescence Imaging Aurora Spectral Detection System

Cathodic Fluorescence Imaging Aurora Spectral Detection System

_______________________________________________________________________________________________________________________________________________________________

Product parameters

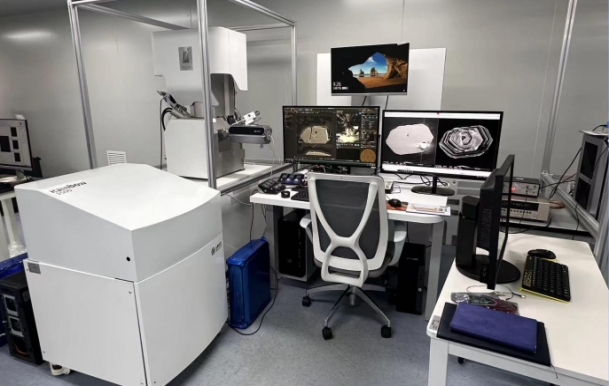

1. The cathodoluminescence imaging and spectroscopic detection system can be combined with scanning electron microscopy or focused ion beam systems;

2.The system is equipped with fluorescence collection mirrors and fiber optic transmission interfaces, signal conditioning acquisition systems, electron beam scanning generators, imaging spectrometers, multi-channel and single channel detectors;

3. Simultaneously capable of collecting fluorescence intensity signals obtained through signal conditioning and acquisition systems;Realize strict synchronization between electron beam scanning signals and detector data acquisition, and obtain cathodoluminescence imaging and cathodoluminescence spectral surface distribution data;

4.  It can provide cathodoluminescence imaging and spectral measurement of various materials at nanoscale spatial resolution, especially suitable for semiconductor material research, optoelectronic material and device research and development, nanophotonics scientific research, thin films and nanostructures, geological oxides and minerals, etc.

1.Spectral response range: 250-1100nm;

2.Filter wheel: six gears, equipped with RGB filters, software control;

3.PMT spectral resolution: 0.2nm (@ 1200g/mm grating);

4.Power supply: 220 V (± 10%), 50 Hz;

5.Vibration and electromagnetic environment requirements: meet the safety and technical requirements of electron microscopy；

6.Equipment parameters can be customized to meet personalized customization needs
